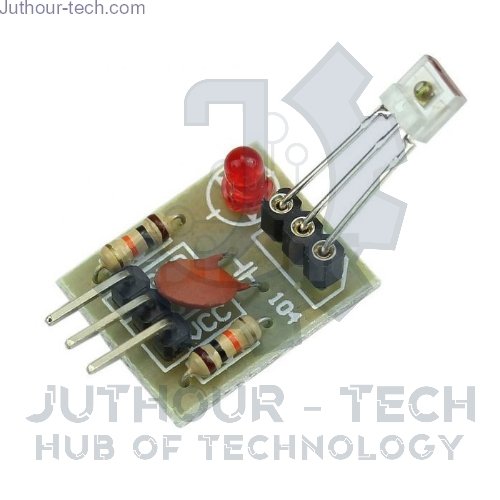

A laser receiving module is a device that detects the presence of a laser beam and outputs a digital signal accordingly. It consists of a photoresistor (LDR) sensor that changes its resistance depending on the amount of light it receives. When the laser beam is focused on the sensor, the resistance decreases and the output voltage increases. When the laser beam is blocked or moved away from the sensor, the resistance increases and the output voltage decreases. The output voltage can be read by an Arduino or other microcontroller to perform different functions.
Some features and specifications of a laser receiving module are:
- Input voltage: 5V DC
- Output voltage: 0V (low level) or 5V (high level)
- Output current: < 15 mA
- Detection distance: up to 15 meters (depending on the laser power and ambient light)
- Detection angle: 15 degrees (horizontal) x 15 degrees (vertical)
- Dimensions: 44 x 15 x 12 mm
- Weight: 4 g
A laser receiving module can be used for various applications such as security systems, remote sensing, and optical communication. For example, it can be used to create a laser alarm system that triggers an LED or a buzzer when the laser beam is interrupted by an intruder. It can also be used to measure the distance or speed of an object by calculating the time difference between the emission and reception of the laser pulse. Furthermore, it can be used to transmit data or audio signals by modulating the laser beam with a specific frequency or pattern.
A laser receiving module is compatible with most common laser modules, such as KY-008 or LD271. However, it is important to use a visible red laser with a wavelength of 650 nm and a power of less than 100 mW to avoid damaging the sensor or causing eye injury. Also, it is recommended to use a resistor or a potentiometer to adjust the sensitivity of the sensor according to the ambient light conditions.
A laser receiving module is a simple but useful device that can detect the presence of a laser beam and output a digital signal accordingly. It can be used for various applications such as security systems, remote sensing, and optical communication. It is easy to use and requires only a 5V power supply and a few wires to connect it to an Arduino or other microcontroller.
