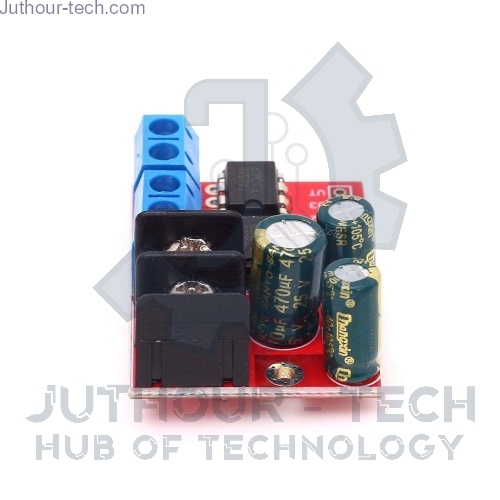

ZK-5AD 5A Dual DC Motor Drive Module is a device that can adjust the speed of two DC motors separately by using pulse width modulation (PWM) technique. It can also change the direction of rotation of the motors by using a double H bridge circuit. The module can receive input signals from microcontrollers or other sources, and can also be controlled by a 433MHz wireless remote control switch module (not included in the package).
Features:
- High power: The module can drive two DC motors with a maximum current of 5A each.
- Small size: The module has a compact size of 382718mm, and can be easily mounted with 2mm diameter holes.
- Low power consumption: The module has a standby current of only 10uA, and can work with a wide range of input voltage from 3.0V to 14V.
- Simple operation: The module has four input terminals (D0, D1, D2, D3) that can control the speed and direction of two motors separately. The logic table is shown in the picture below.
- Dual driver: The module uses a double H bridge circuit (L298N) to drive two DC motors independently or simultaneously.
- Support independent control for 2 motors: The module can control the speed and direction of each motor separately by using different input signals.
- Support 433MHz remote control (not included): The module can be controlled by a 433MHz wireless remote control switch module (not included in the package). The user can choose from three modes: inching mode, self-locking mode, and interlocking mode.
Specifications:
- Product name: ZK-5AD 5A Dual DC Motor Drive Module
- Product number: ZK-5AD
- Working voltage: DC 3.0V-14V
- Input signal voltage: DC 2.2V-6.0V
- Drive current: 5A
- Standby current: 10uA
- Working temperature range: -20℃~85℃
- Working humidity range: 0%-95%RH
- Size: 382718mm
- Mounting hole diameter: 2mm
