Rigid coupler 5mm to 8mm stepper motor Shaft coupling ( Blue )
Rigid coupler 5mm to 8mm stepper motor Shaft coupling ( Blue ) Rigid coupler 5mm to 8mm stepper motor Shaft coupling ( Blue )

Rigid coupler 5mm to 8mm stepper motor Shaft coupling (Blue)

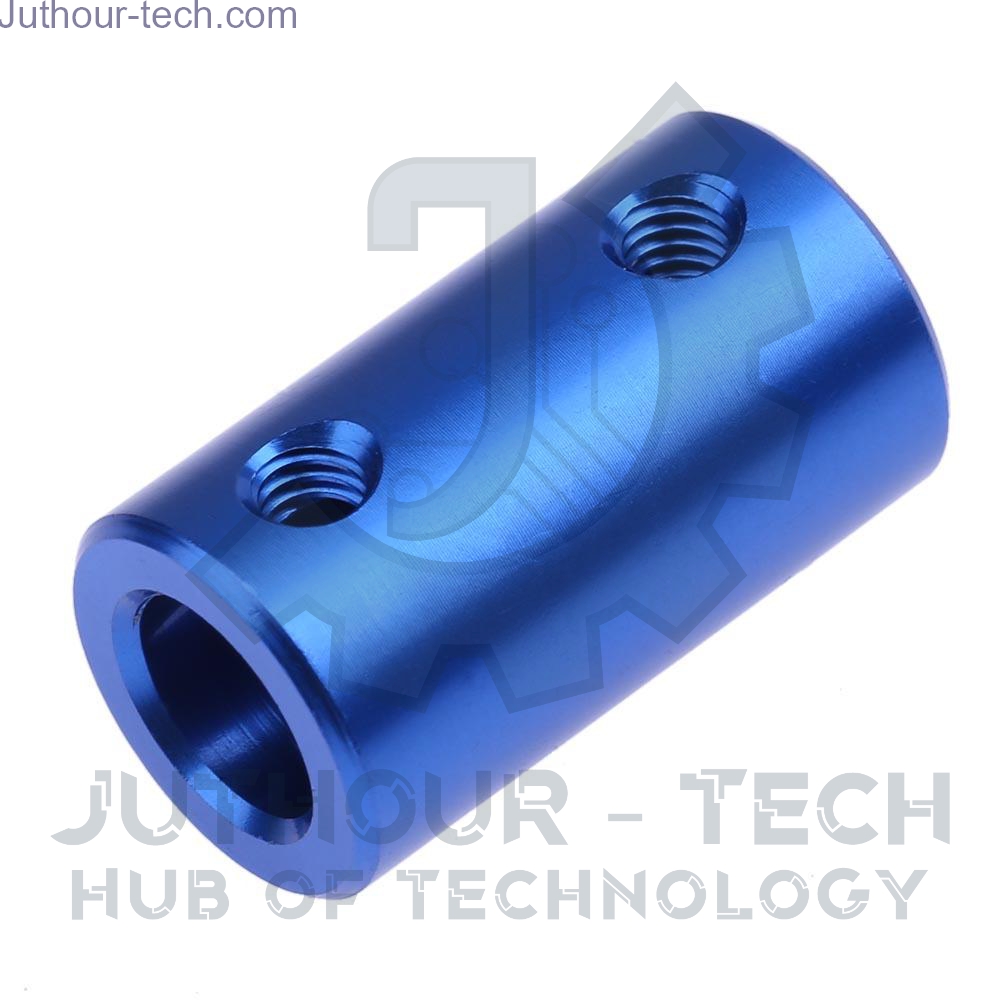

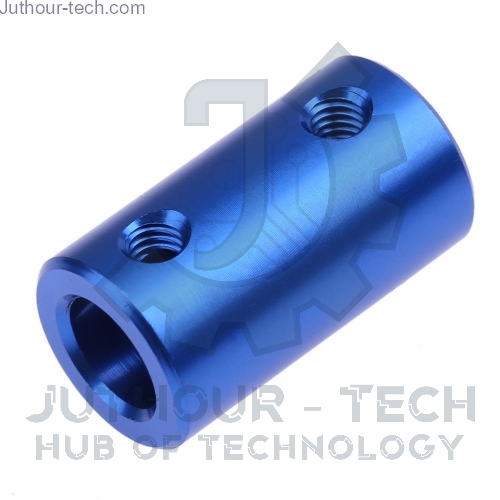

A rigid coupler that connects a 5mm shaft to an 8mm shaft, made of aluminum alloy and anodized blue.
Availability: 1 in stock
SKU: C-01-10
Old price: 83.34 EGP
83.34 EGP
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

A rigid coupler is a device that connects two shafts of different diameters and holds them firmly in place. It is used to transmit torque and rotation between the shafts, and can also be used to align them. This rigid coupler is made of aluminum alloy, which is lightweight, durable, and corrosion-resistant. It has a blue anodized finish that gives it a sleek and attractive appearance. The coupler has a connection diameter of 5mm on one side and 8mm on the other, and it comes with four set screws to secure the shafts. The coupler has a total length of 25mm and an outside diameter of 14mm.

Features:

  • Rigid and strong connection between two shafts of different diameters
  • Aluminum alloy material with blue anodized finish

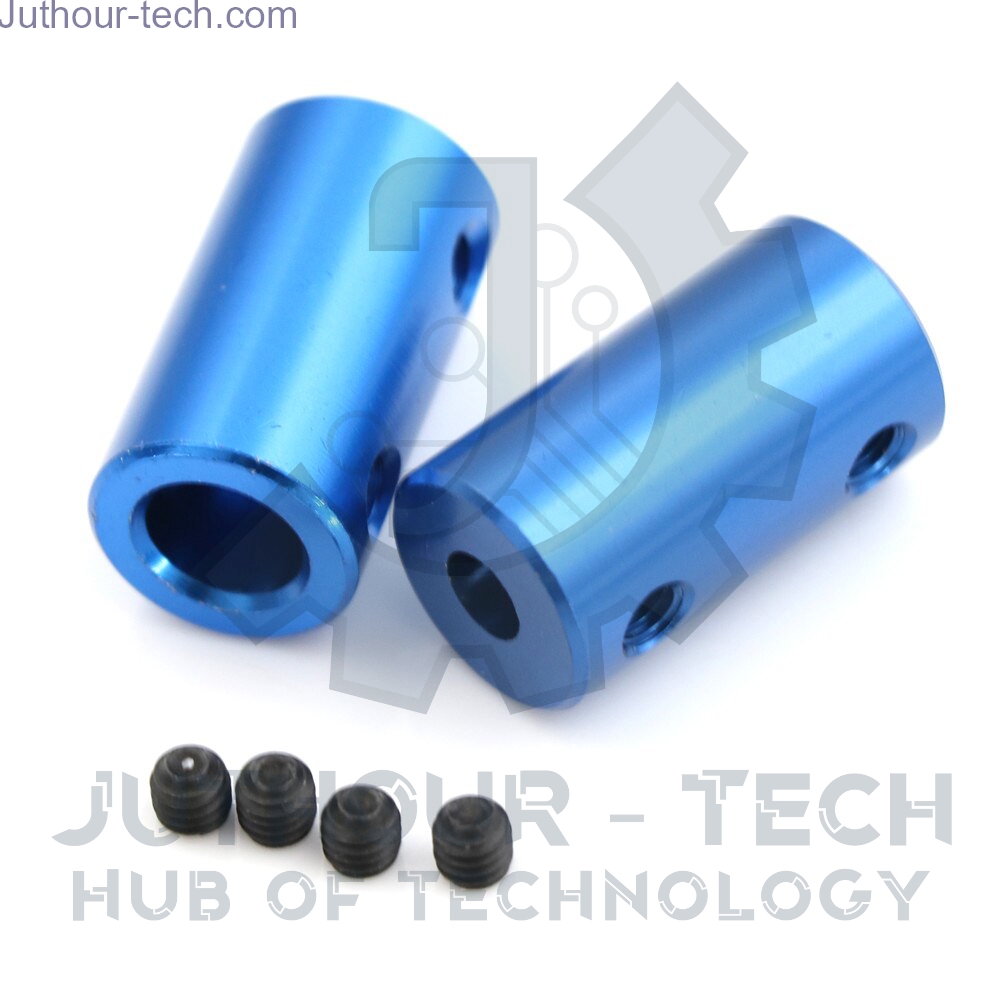

  • Four set screws for easy installation and adjustment
  • Suitable for 3D printers, CNC machines, stepper motors, and other applications

Specifications:

  • Connection diameter: 5mm to 8mm
  • Total length: 25mm
  • Outside diameter: 14mm
  • Material: Aluminum alloy
  • Color: Blue
  • Fastener type: Set screw
  • Thread size: M4
  • Through angle: 180 degrees
