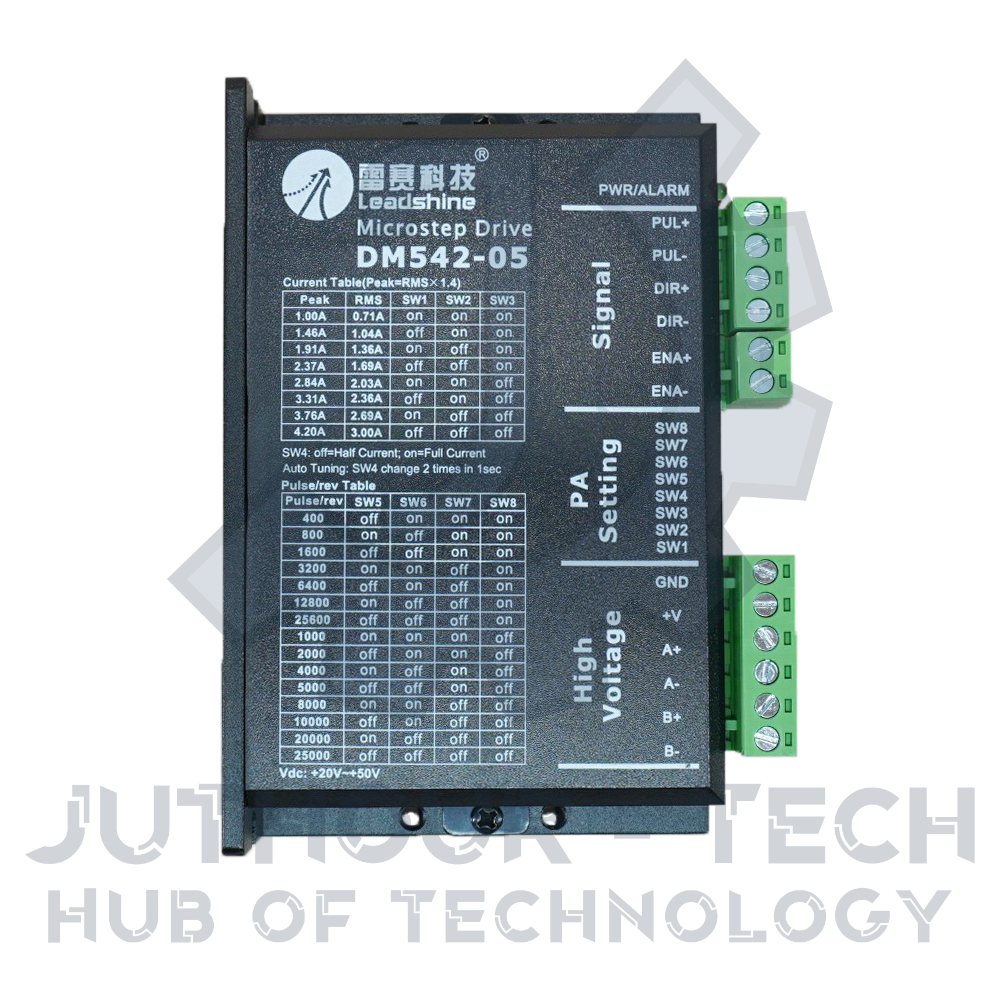

Leadshine DM542-05 Stepper Motor Driver

Leadshine DM542-05 Stepper Motor Driver – LEADSHINE ORIGINAL PRODUCT

Unlock superior performance and reliability in your motion control systems with the Leadshine DM542-05 Stepper Motor Driver – the genuine LEADSHINE ORIGINAL PRODUCT. This advanced stepper driver is engineered for precision, smoothness, and maximum efficiency, making it the professional’s choice for demanding automation, CNC, and robotics applications.

Key Features:

• Anti-Resonance Technology: Automatically detects and dampens resonance, delivering optimal torque and eliminating harmful mid-range instability for consistently smooth motor operation.
• Sophisticated Auto-Tuning: Featuring motor auto-identification and parameter auto-configuration technology, the DM542-05 optimally calibrates itself for a wide range of 2-phase and 4-phase stepper motors, ensuring peak responsiveness and maximized performance with any compatible motor.
• Multi-Stepping Function: Input low-resolution steps and achieve high microstep outputs, resulting in ultra-smooth and precise motion – perfect for applications where detailed movement is critical.
• 15 Microstep Resolutions: Easily select from 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, and 25000 steps/rev to precisely match your application requirements.
• Soft-Start Design: Ensures a stable power-up with no sudden “jump”, improving equipment safety and extending the lifetime of your motor and mechanical components.
• Flexible Current Control: Choose from 8 peak current levels (1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A) to perfectly match your stepper motor’s needs.
• High-Speed Pulse Input: Supports pulse input frequencies up to 200 KHz, with TTL-compatible, optically isolated inputs for high-speed digital interfacing and superior noise immunity.
• Automatic Idle-Current Reduction: Increases energy efficiency and motor longevity by decreasing current when the motor is idle.
• Versatile Control Modes: Fully supports PUL/DIR (pulse/direction) and CW/CCW (clockwise/counterclockwise) signal modes for straightforward integration into diverse control systems.
• Comprehensive Protection: Equipped with over-voltage and over-current protections, safeguarding your investment against unstable power conditions.

Specifications:

• Input Voltage: 18-50VDC
• Motor Compatibility: 2-phase & 4-phase stepper motors
• Microstep Settings: 15 selectable resolutions
• Input Frequency: up to 200 KHz (TTL compatible, optically isolated)
• Peak Current Settings: 8 selectable options (up to 4.2A)

Choose the Leadshine DM542-05 Stepper Motor Driver – the trusted, feature-rich solution for industrial automation, CNC machinery, robotics, and precise motion control applications. Experience peace of mind with genuine LEADSHINE quality, cutting-edge technology, and unmatched reliability.

LEADSHINE ORIGINAL PRODUCT – ENGINEERED FOR EXCELLENCE
