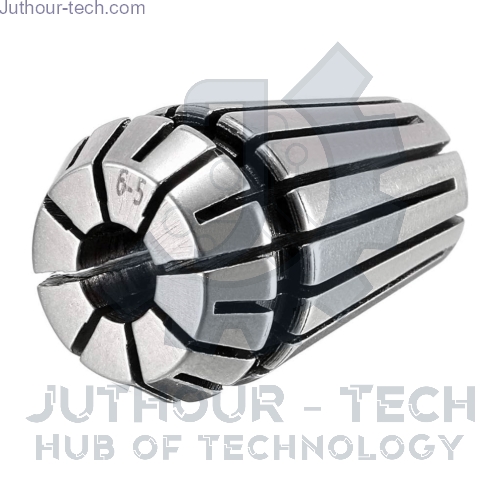

An ER16 Collet 6mm is a type of ER collet, which is a widely used clamping system for holding tools and workpieces in machining operations. ER collets have a cylindrical shape with slits along the length, which allow them to expand and contract to fit different diameters. An ER16 Collet 6mm is designed to hold a 6mm diameter shank, such as a drill bit, end mill, or router bit, in an ER collet chuck. The collet chuck is mounted on a spindle, and the collet is inserted into the chuck and tightened by a nut.
An ER16 Collet 6mm has the following features and specifications:
Features:
- Precision ground for accurate fit and alignment
- Mechanically sealed to prevent coolant leakage
- Durable and corrosion-resistant
- Compatible with any standard ER collet chucks
Specifications:
- Material: Hardened alloy spring steel
- ER: ER16
- Nominal diameter: 6mm
- Clamping range: 5mm-6mm
- Collapse: 1mm
- Run-out: 0.010mm
- Drive: Round
An ER16 Collet 6mm is a versatile and reliable tool that can be used for various machining applications, such as drilling, milling, turning, and engraving. It offers high clamping force, stability, and accuracy, as well as the ability to handle high-pressure coolant flows. It is easy to install and remove, and requires minimal maintenance. An ER16 Collet 6mm is an essential component for any ER collet system.
