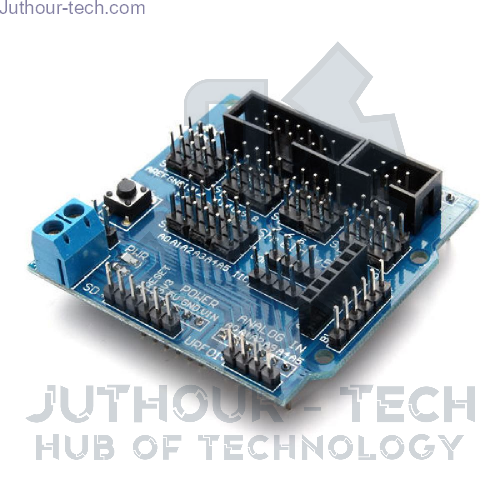

The Arduino Sensor Shield V5 is an add-on board designed for the Arduino microcontroller platform. It provides a convenient way to interface with various sensors and actuators, allowing you to quickly prototype and build projects that involve sensing and controlling the physical world.
Features:
- Compatible with Arduino Uno, Mega 2560, and similar form-factor boards
- Brings out the standard Arduino I/O pins to 3-pin headers with dedicated ground and power pins per I/O
- Supports digital and analog sensors, as well as digital and PWM outputs
- Includes an auxiliary power connector for supplying external power to the digital I/O pins, useful for driving servos and other high-current devices
- Has a remote reset switch for easy access
- Brings the on-board pin-13 LED to the shield for easy visibility
- Incorporates an I2C interface for connecting devices that use the I2C protocol, such as LCDs, EEPROMs, RTCs, etc.
- Has a dedicated connector for the RB URF v1.1 ultrasonic sensor, which can measure distance up to 4.5 meters
- Has 6 servo connectors that can be controlled by the Arduino PWM pins
- Has a Bluetooth module interface for wireless communication
Specifications:
- Operating voltage: 5V (from Arduino board or external power supply)
- Maximum current per I/O pin: 40 mA (as per Arduino specifications)
- Dimensions: 69 x 53 x 14 mm (L x W x H)
- Weight: 25 g
