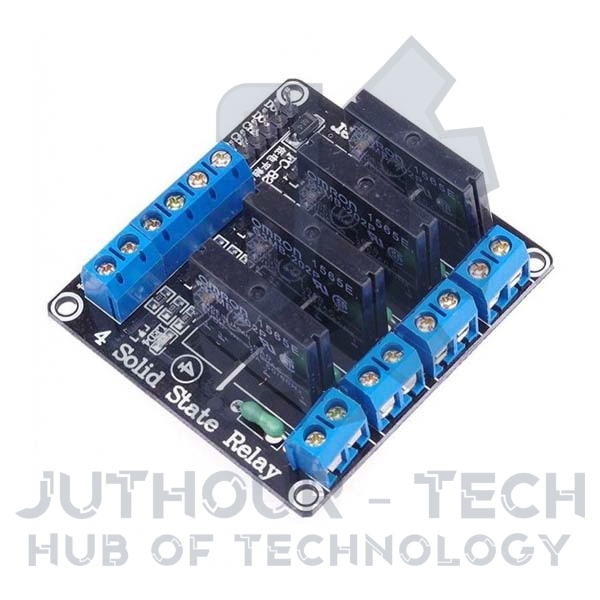

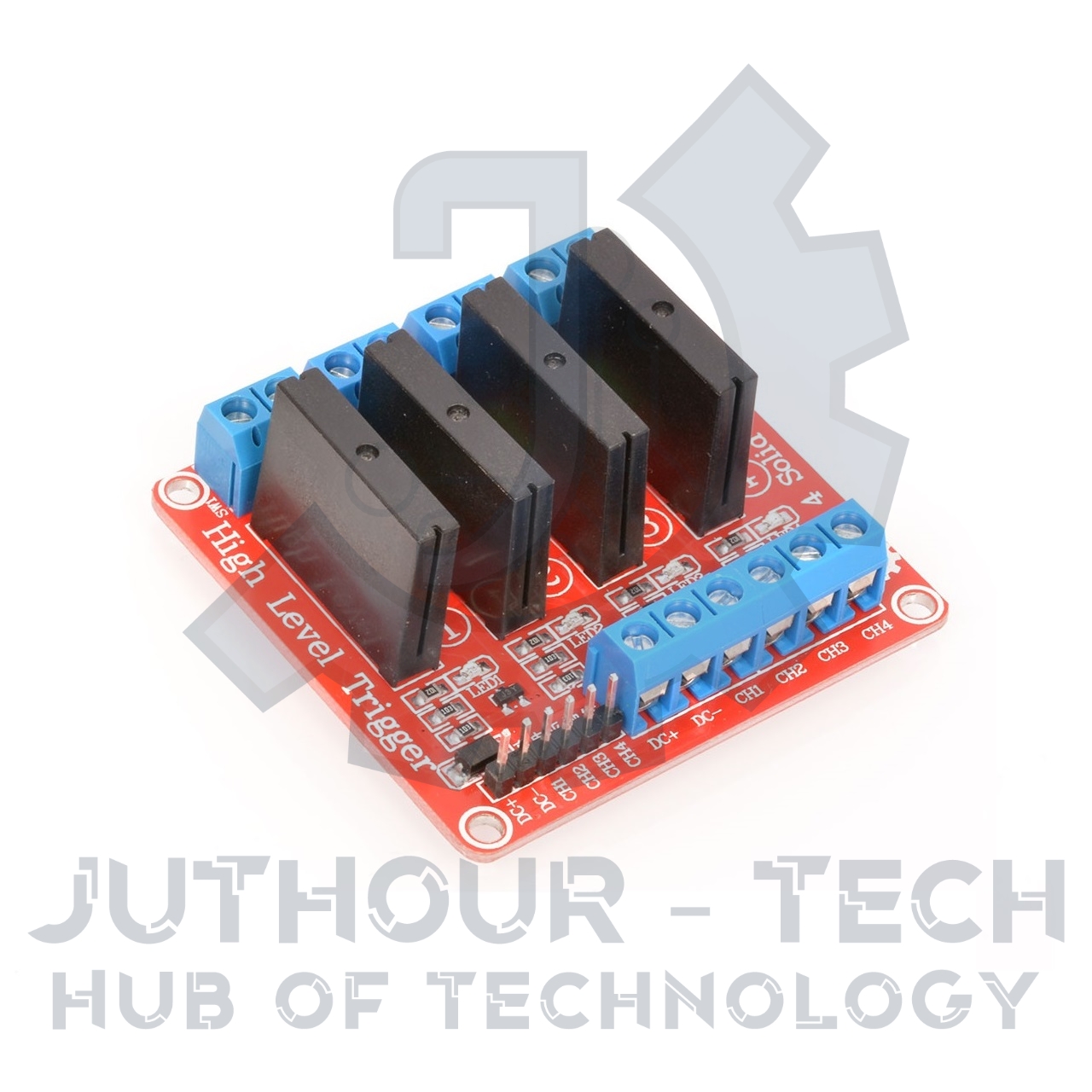

4 Output Channel SSR Solid State Relay 5V Module (Active at HIGH Level)
4 Output Channel SSR Solid State Relay 5V Module (Active at HIGH Level) 4 Output Channel SSR Solid State Relay 5V Module (Active at HIGH Level)

4 Output Channel SSR Solid State Relay 5V Module (Active at HIGH Level)

4 Output Channel SSR Solid State Relay 5V Module (Active at HIGH Level)
Availability: 2 in stock
SKU: A-01-25
Manufacturer part number: ARD-MOD-650084-A-01-25
Old price: 325.00 EGP
290.00 EGP
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Specifications

  • 5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
  • Dimensions : 57x55x25 (length x width x height)
  • Input Power: 5VDC
  • Voltage: 5V
  • Quiescent current : 0 mA
  • Operating current: 12.5mA
  • Trigger Voltage: 3.3-5V
  • Trigger current: 2mA

Connection :

  • DC + : positive power supply (according to the relay voltage supply)
  • DC- : negative power supply
  • CH1 : relay module signal triggering end (Relay 1)
  • CH2 : relay module signal triggering end (Relay 2)
  • CH3 : relay module signal triggering end (Relay 3)
  • CH4 : relay module signal triggering end (Relay 4)
