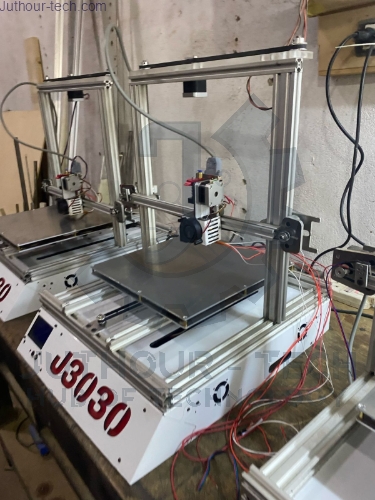

3D Printer J3030 Xtreme Full Kit

$523.20
$438.00
3D printer full Kit help you to build a 3D printer that can giving you a 30x30x30 working area. Kit contents all printer parts that you need to build you 3D printer and You can choose the components of the printer yourself. You can also assemble the printer yourself or choose an assembly. You can add the services you want to obtain with the printer.
SKU: XT.30.FK

Available Options

*
*
*
*
*
*
*

Main Materials: Aluminum,Acrylic
Main Color: Silver
Working Area: 30x30x30

Contents:
Aluminum 3D Printer Frame Kit(45x49x49)
1 V-Slot 20x20 Linear Rail (45cm)
6 V-Slot 20x40 Linear Rail (45cm)
16 M5x35mm High Tensile Socket Head Screws
10 M5x10mm High Tensile Socket Head Cap Screws
4 Double T-Nut

3D Printer 4 Legs Kit
4 stick Anti Vibration for 3D Printers and other machines 40mm
20 M5x10mm High Tensile Socket Head Cap Screws
4 90 Degree Joining Plate
4 Screw leveling legs
14 Double T-Nut

X and Y V-Slot
2 V-Slot 20x20 Linear Rail (49cm)
1 V-Slot 20x20 Linear Rail (45cm)

J3030 Acrylic Kit
2 X Axis Right side plates
2 X Axis Left side plate
1 X Axis Gantry Plate
1 X Axis Limit switch mount Plate
1 Y Axis Bulid Plate 32cmx32cm
1 Y Axis Belt Tension and ideler mount
1 Y Axis Motor mount
1 Y Axis Limit switch mount Plate
1 Z Axis Top Plate
1 Z Motor spacer
1 Z Axis optical limit switch mount Plate
1 Z Axis Hotend Mount

Idler,Pulley and Belt
2 GT2 40 Tooth 8mm Bore Pulley
2 GT2 20 Tooth 5mm Bore Pulley
2 Aluminum Idler Pulley 5mm
2 Rubber Timing Belt Width 6mm
1 Gt2 6mm Closed Loop Timing Belt 2Gt-6(930mm)

bearing,V-Wheel
17 Xtreme Solid V Wheel Kit
4 F623zz Flanged bearing 3x10x4
4 F688z Flanged Bearing 8x16x5

Screws and Nut
9 Eccentric Spacer 1/4 inch
14 Aluminium spacer 5.1 x 10 x 1/4 Inch
2 Lead Screw 40cmx8mm
2 Nut Block for 8mm Metric
7 Double T-Nut
6 Slide t-nut 5mm
27 M5 Nyloc Nut-100-551
2 Lock Collar 8mm
8 Low Profile Screws M5X10MM
4 Low Profile Screws M5X20MM
2 Low Profile Screws M5X25MM
3 Low Profile Screws M5X30MM
8 Low Profile Screws M5 X 35MM
6 Low Profile Screws M5 X 40MM
6 M5x15mm High Tensile Socket Head Cap Screws
15 M3x10mm High Tensile Socket Head Screws
10 M3x15mm High Tensile Socket Head Screws
10 M3x20mm High Tensile Socket Head Screws
10 M3x30mm High Tensile Socket Head Screws
25 Light Metal Nut Washer 3mm
25 Light Metal Nut Washer 5mm
25 Iron Nut 3mm

Elctronics
1 Arduino Mega 2560
1 Ramps 1.4
4 A4988 – Stepper Motor Driver
2 Mechanical End Stop Switch Module
1 Mechanical Limit Switch / Endstop for 3D Printers With 70 CM Cable
1 RAMPS LCD 20×4 with SD Card interface
1 5015 Radial Turbo Blower DC Fan 12Vdc
2 12vdc fan 40x40

Heatbed
1 NTC 3950 Thermistors-big head Size with dupont
1 3D Printer PCB Mk2b 12/24 Volt Heatbed
1 30x30 Aluminum bed 3mm
4 3D PRINTER BED LEVELING M3 SCREW WITH SPRING AND HAND KNOB

Hotend
1- E3D V6 Long distance J-head Hotend with Cooling fan ,heater,thermistor and fan duct built-in for 1.75mm 3D Printer Nozzel 0.4mmd

Extruder
1- MK8 All-Metal Remote Extruder for 1.75mm 3d Printer Parts

Motors
4 Nema 17 Used motors

Power Supply
1 12Vdc/30A Power supply

Control Box
1 Plywood control box
10 aluminum legs 20x40 Length 80mm

spool holder

cables
1 Extension Sensors Cable 70cm
4 Stepper Motor Extension Cable 70cm
1 Arduino Mega USB Cable
1 15A HeatBed High Power Output Cable 100cm
1 Teflon Tube 100cm

printed parts
1 hotend mount

Others
1 Cable Drag Chain 7x7
1 Cable Drag Chain 15x15
